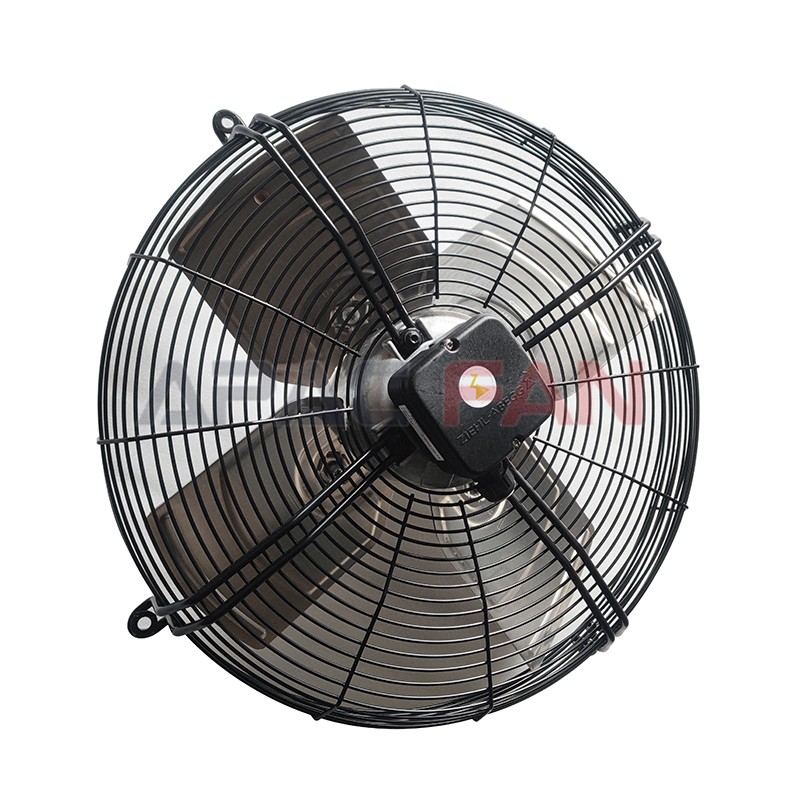

FB056-VDW.4I.A4L 127411 ZIEHL-ABEGG Air Conditioning

Brand：

ZIEHL-ABEGG

Category：

Axial Fan

Description：

Brand：ZIEHL-ABEGG
Part No：FB056-VDW.4I.A4L 127411
Fan Type：Axial Fan
Rated Voltage(V)：3~400
Size(mm)：560
Max.Air Flow(m³/h)：9500
Max.Pressure(Pa)：380
Input Power(W)：840
Speed(rpm)：1360

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

FB056-VDW.4I.A4L 127411

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

560

Max.Air Flow(m³/h)：

9500

Max.Pressure(Pa)：

380

Input Power(W)：

840

Speed(rpm)：

1360

Noise(db)：

Description

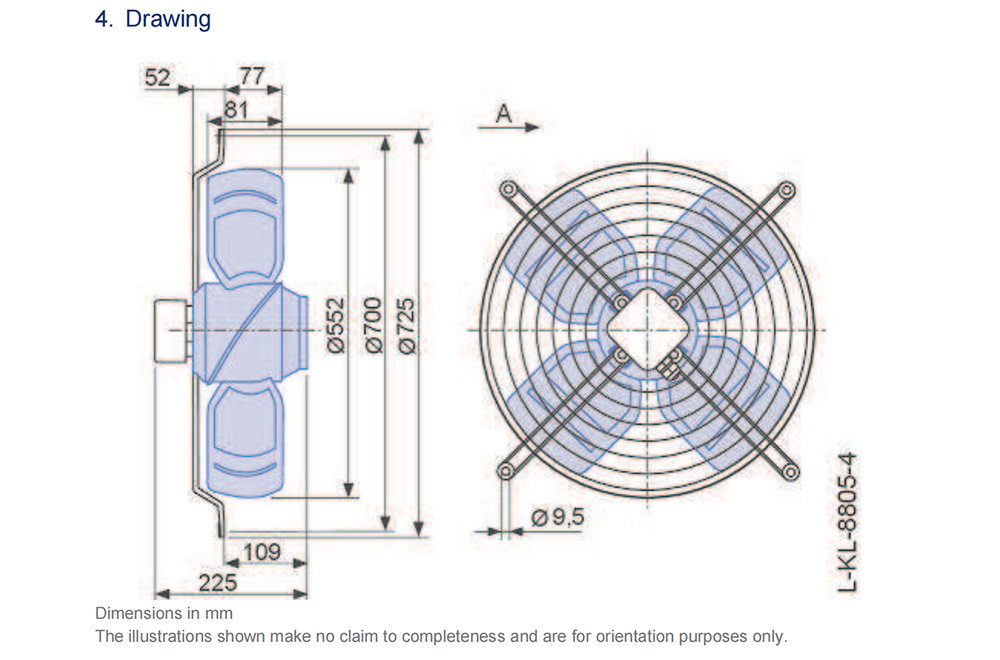

FB056-VDW.4I.A4L 127411 Ziehl-abegg Specification drawing：
